Flame Retardant High Flexibility Abrasion Resistant PET Braided Cable Sleeve for Wire Harness Protection

Flame Retardant High Flexibility Abrasion Resistant PET Braided Cable Sleeve for Wire Harness Protection

ブランド名: None
型番: 5mm5m
MOQ: 1
価格: negotiable
支払条件: L/C、D/A、D/P、T/T、ウェスタンユニオン
供給能力: 1日あたり500000M
詳細情報
起源の場所:
ジャングス (中国)
証明:
ISO9001
材料:
ペット
動作温度:
-50~150℃
可燃性:
高い可燃性
難燃剤:
自己消火性
環境に優しい:
ハロゲンフリーで環境に優しい
色:
黒、紫、青、黄、赤、ピンク、グレー、茶色、白など
サイズ:
5mm、6mm、10mm、12mm、15mm、16mm、25mmから65mmまで、他のサイズは要求に応じてカスタマイズできます
パフォーマンス:
高い拡張強度
抗張力:
優れた弾性と張力
メルトポイント:
250℃
柔軟性:
柔軟性に優れ、曲げたり傷がつきやすい
パッケージの詳細:
カートン
供給の能力:
1日あたり500000M
ハイライト:

flame retardant PET cable sleeve

,

abrasion resistant braided cable sleeve

,

high flexibility wire harness protector

製品説明
UL94 High Flexible PET Braided Cable Sleeve
Product Overview

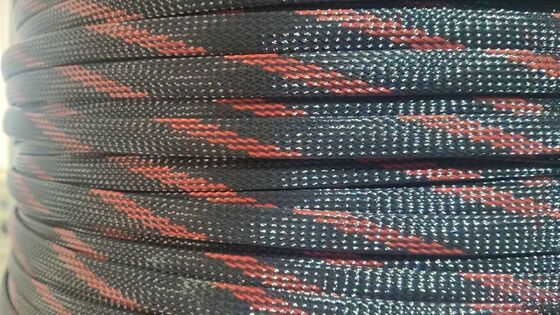

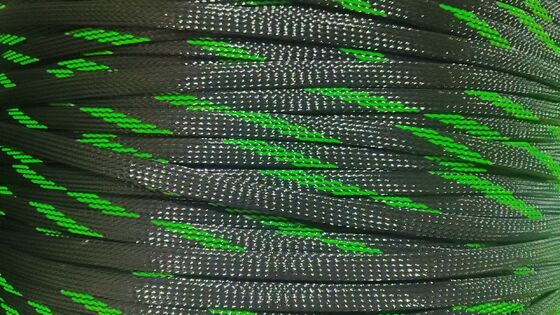

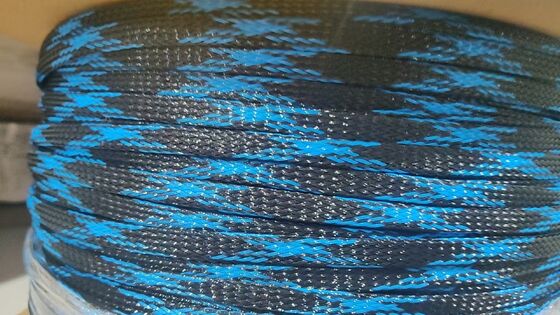

PET braided expandable sleeving, also known as PET braided mesh tube or snake skin tube, is woven from high-tenacity eco-friendly PET monofilament. This versatile solution is widely used for wire harness protection, management, and finishing, offering excellent flexibility, abrasion resistance, and heat dissipation capabilities.

Material & Construction
Material
High-tenacity eco-friendly PET polyester monofilament
Structure
Open braided construction with high elasticity
Expansion Ratio
Up to 1.5 times of original diameter
Technical Specifications
Operating Temperature
-50°C to 150°C
Melting Point
240±10°C
Flammability Rating
UL94 V-2, VW-1
Environmental Compliance
RoHS, Halogen-free
Key Features
  • Highly flexible and expandable
  • Abrasion-resistant construction
  • Flame-retardant properties
  • Breathable design for heat dissipation
  • Anti-aging and chemical-resistant
Available Specifications

Flat Widths: 3mm, 6mm, 8mm, 10mm, 12mm, 16mm, 20mm - 76mm

Standard Colors: Black, white, gray, red, blue, yellow, transparent

Applications
Electronics & Computers
Power cords, internal wiring, HDMI/USB/network cables, server equipment
Automotive & Rail
Engine harnesses, interior wiring, EV high voltage cables, charging pipes
Home Appliances
Air conditioners, refrigerators, washing machines, TVs, ovens
Industrial Equipment
Robots, automation machines, control cabinets, medical devices
Communication
Base stations, fiber jumpers, data center cables, optical equipment
Other Industries
Aerospace, marine wiring, audio engineering, stage lighting
